Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
| Nama Produk: | Pompa Diafragma Pneumatik | Menjamin:: | Satu tahun |
|---|---|---|---|
| Tekanan Outlet Maksimum: | 0.83Mpa | Fitur: | Tidak bocor |
| Penggunaan: | Bahan kimia | Bahan bakar: | Udara terkompresi |
| Struktur: | Pompa diafragma | Teori: | Pompa Diafragma yang Dioperasikan Udara |
| Bahan: | Plastik | Jenis: | diafragma |
| Aliran maksimum: | 156L/m | ||
| Menyoroti: | Pompa Diafragma Plastik Pneumatik,Pompa Diafragma Plastik Viskositas Tinggi,Pompa Diafragma Plastik 156L / m |
||

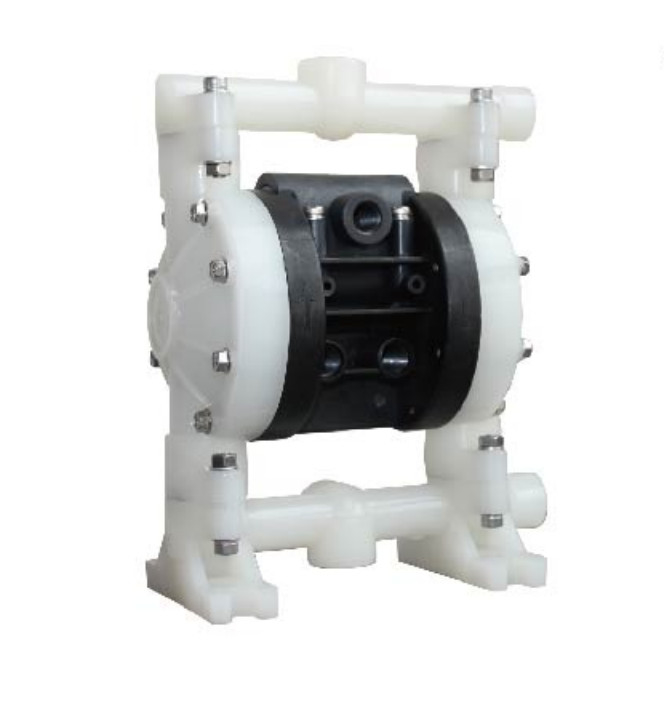

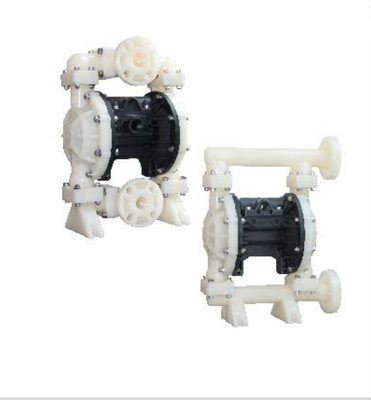

Pompa Diafragma Plastik Pneumatik Pompa Diafragma Viskositas Tinggi Kebisingan Rendah
Pompa Diafragma Polypropylene Tanpa Kebocoran Untuk Mencetak / Mewarnai
Pneumatikpompa diafragma adalah mesin pengangkut baru, yang merupakan jenis pompa baru.Udara terkompresi sebagai sumber daya, dapat digunakan dalam cairan korosif, cairan dengan partikel, viskositas tinggi, mudah menguap, mudah terbakar, cairan sangat beracun.
Pompa diafragma udara(juga dikenal sebagaiPompa membran, pompa diafragma ganda yang dioperasikan udara (AOOD)ataupompa diafragma pneumatik) yang menggunakan kombinasi aksi bolak-balik dari karet, termoplastik atau diafragma dan katup yang sesuai di kedua sisi diafragma (katup periksa, katup kupu-kupu, katup penutup, atau bentuk lain dari katup penutup) untuk memompa cairan.
| Barang | Keterangan | Satuan | Gambar Referensi |
| 1 | Tekanan masuk udara maksimum | Mpa | 0.83 |
| 2 | Laju aliran maksimum | l/Min | 173 |
| 3 | Angkat maksimum | M | 70 |
| 4 | Tekanan outlet maksimum | Mpa | 0.83 |
| 5 | Ukuran partikel maksimum | mm | 3 |
| 6 | Bobot | kg | 12.3 |
| 7 | Tingkat kebisingan | db | 70 |
spesifikasi
Pompa Diafragma Udara
1. Tidak bocor
2. Kinerja priming diri yang baik
3. Sampaikan semua jenis media
4. Bahan: Baja tuang, Alu, SS, PP
A10PA(pemilihan model)
Bentuk mulut pipa: A-BSP B-NPT(F) C-Flange
Bahan diafragma: 9 – Santoprene H – Hytrel T - PTFE/Santoprene
Bahan bola:9 -Santoprene H – Hytre T – PTFE A - Acetal
Bahan kursi bola: P/K –Polypropylene/Kynoar SS –Stainless Steel
Bahan pompa: SS –Stainless Steel AL –Aluminium Alloy CI- Carbon Steel P/K –Polypropylene/Kynoar
Batas Suhu Terapan Maksimum(bahan diafragma / bola / segel)
Acetal ···················································.000 °·4 40 °. 40 ° - 150°F (4,4- 65,5°C)
Santoprene····················································································································································· -40 °- 107.2 °C) ···································································································· ·······40°- 220°F (4,4°- 104°C) Nitril·································································································································· ··········································································································································································································································································································| ···········································································································································– -176.6°C) Hytrel················································· ········-20°-150°F (-12°- 93°C) Kynar················································································································································································································································································· ··································10°-200 °F (-28.9°- 65.5°C) Polipropilena······ ·········································32°- 175 °F (0-79.4°C)
1/2”Diagram alir
Bidang aplikasi pompa diafragma pneumatik
1. manufaktur mobil: losion penggilingan, oli, pendingin, oli hidrolik, sulfida, kapal tangki mulai mobil, oli emulsi, pencampuran cat
Aditif cat, tangki dekontaminasi, minyak potong, pencampuran air dan glikol, pengecatan;
2. Dirgantara: minyak dan drainase pesawat, pengisian bahan bakar satelit, propelan roket padat, silo peluncuran rudal bawah tanah;
3. minuman: fermentasi, cairan tangki, jus buah panas, cairan biji rami, cairan tangki, cairan pekat, campuran gas-cair, anggur, jus buah, selai, sirup jagung;
4. industri kimia: asam, alkali, pelarut, koloid, campuran, magnesium hidroksida, cat, limbah, resin, lateks, perekat
Pembuangan lumpur, stabilizer, filter press, elektrolit;
5. industri konstruksi: drainase terowongan dan kolam, bubur semen, perekat ubin keramik, bubur kapur, pelapis langit-langit dan penyemprotan pola;
6. industri kimia harian: deterjen, krim salju, sampo, lateks, krim pencuci tangan, surfaktan, gel rambut, sabun;
7. Elektronik: pelarut, rendaman elektroplating, cairan ultra murni, larutan pembersih akustik, limbah sulfat, nitrat dan asam nitrat, asam etsa
Aseton, bahan pemoles;
8. industri makanan: air garam, coklat, cuka, sirup, minyak sayur, minyak kedelai, madu, makanan kucing dan anjing, darah hewan;
9. industri mebel: perekat, cat, dispersan, pelarut, pewarna, lateks putih, lem epoksi, lem kanji;
10. industri pertambangan: pembuangan limbah terowongan, drainase, lendir batu bara dan bubur batu, bubur semen, grouting tanah liat, transportasi minyak, bubur bahan peledak, perekat
Minyak pelumas dan busa;
11. Administrasi Kota: pembuangan limbah dari tangki air dan terowongan, pembersihan limbah, bahan kimia, limbah permukaan, irigasi dan drainase darurat, pembersihan kebocoran
Pemisahan minyak dan air limbah;
12. penyemprotan: resin, pelarut, turunan akrilik, pengawet kayu, penyemprotan pemadatan, cat, bubur TiO2, primer
Pewarna, dispersan, tangki pembersih cat, resin alkid;
13. obat-obatan: ekstrak tumbuhan, tablet, salep, alkohol, alat bantu penyaring, ultrafiltrasi, plasma, pelarut limbah;
14. elektroplating: deposit anoda, tangki elektroplating, cat, enamel, pelarut, tangki pembersih, filtrasi;
15. pembuatan kertas: losion, perekat, pigmen, resin, dispersan, tinta cetak, pulp TiO2, kaolin, hidrogen peroksida;
16. pemurnian: drainase bawah, residu minyak, pembersihan wadah, transportasi portabel;
17. mobil tangki: pemuatan dan pembuangan tangki tangki oli kendaraan, peralatan pembersih mobil tangki, penyemprotan asam dan cairan busa;
18. pembuangan limbah kapal dan dasar, pembersihan dasar, deslagging permukaan minyak dan air laut;
19. metalurgi / pengecoran / logam non-ferrous: perekat inti logam, hidroksida dan karbida, larutan pembersih debu, pencucian inti
cetakan longgar;
20. tekstil / karpet: pencetakan dan pencelupan kimia, kanji dan sizing, resin, pewarna, losion;
21. pengolahan limbah: susu kapur, bubur, limbah selokan, bahan kimia, pengalengan filter press, polimer dan air limbah
22. daya: sisa minyak, pemisahan minyak-air, asam, alkali dan limbah;
23. utilitas umum: cairan yang terkontaminasi, makanan pemurni, susu kapur, minyak transformator, produk resin;
