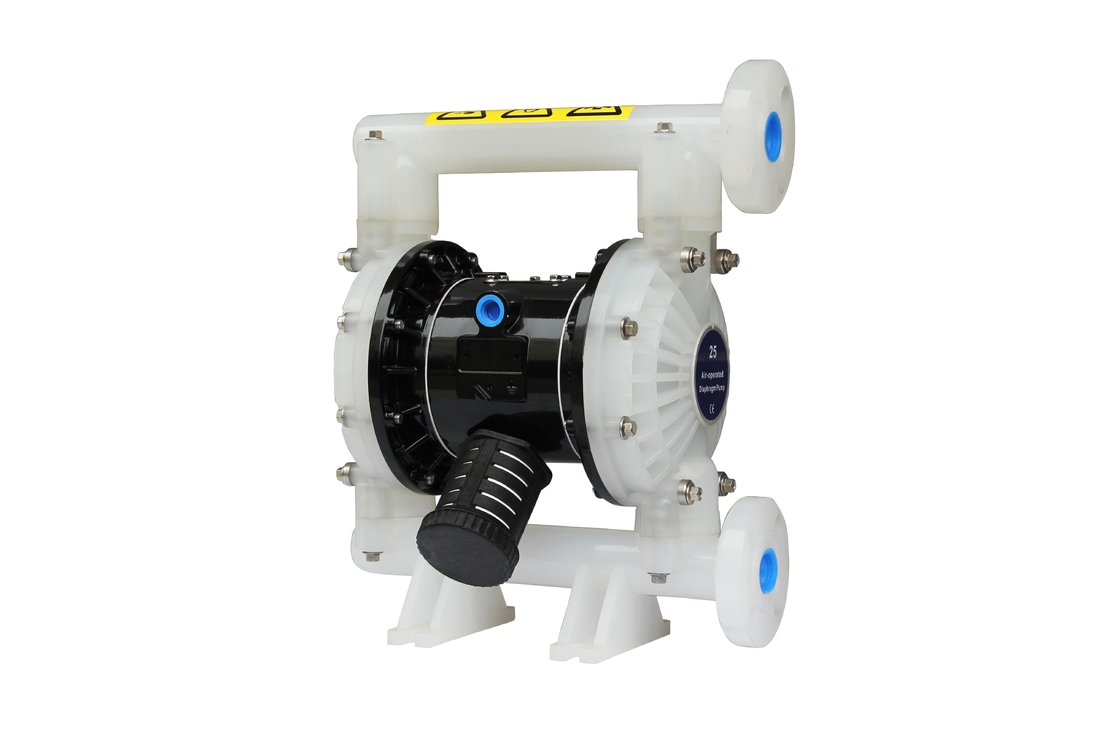

1 Inch Polypropylene Diafragma Pump Air Driven Diaphragm Pump Butterfly Valves

Katup Kupu-kupu Pompa Diafragma Ganda Dioperasikan Udara Polypropylene


Pompa diafragma menawarkan pengiriman volume tinggi bahkan pada tekanan udara rendah dan berbagai opsi kompatibilitas material yang tersedia.Lihat bagan model dan opsi.Pompa ini dilengkapi dengan motor udara termodulasi dan bagian cairan.
Pompa diafragma yang dioperasikan udara secara bergantian menghasilkan tekanan fluida masuk dan tekanan fluida positif di ruang fluida dengan menggunakan perbedaan tekanan di ruang udara.Katup bola dapat memastikan aliran cairan ke depan.

Siklus pompa akan dimulai saat tekanan udara diterapkan dan akan terus memompa dan memenuhi permintaan.Ini akan membangun dan mempertahankan tekanan saluran dan akan berhenti bersepeda setelah tekanan saluran maksimum tercapai (perangkat pengeluaran ditutup) dan akan melanjutkan pemompaan sesuai kebutuhan.

Pompa diafragma udara(juga dikenal sebagaiPompa membran, pompa diafragma ganda yang dioperasikan udara (AOOD)ataupompa diafragma pneumatik) yang menggunakan kombinasi aksi bolak-balik dari karet, termoplastik atau diafragma dan katup yang sesuai di kedua sisi diafragma (katup periksa, katup kupu-kupu, katup penutup, atau bentuk lain dari katup penutup) untuk memompa cairan.




spesifikasi

Pompa Diafragma Udara
1. Tidak bocor
2. Kinerja priming diri yang baik
3. Sampaikan semua jenis media
4. Bahan: Baja tuang, Alu, SS, PP


BG2 5 PP - X XX X -X X (pemilihan model)

Bentuk mulut pipa: A-BSP B-NPT(F) C-Flange
Bahan diafragma: 9 – Santoprene H – Hytrel T - PTFE/Santoprene
Bahan bola:9 -Santoprene H – Hytre T – PTFE A - Acetal
Bahan kursi bola: P/K –Polypropylene/Kynoar SS –Stainless Steel
Bahan pompa: SS –Stainless Steel AL –Aluminium Alloy CI- Carbon Steel P/K –Polypropylene/Kynoar

Keuntungan:
1. poros tengah adalah struktur integrave, memastikan konsentrisitas dan membuat aksi lebih lancar.
2. tingkatkan unit filter, pastikan pengoperasian normal motor udara.
3. bahan pelat berpemandu udara adalah keramik dan baja tahan karat agar cocok untuk tempat kerja yang berbeda
4. ujung piston tidak mengadopsi struktur sekrup dan mudah dipasang
5. motor udara eksternal, mudah dirawat
6. plastik rekayasa diadopsi, menghemat sumber daya
7. dibandingkan dengan pompa diafragma lainnya, bagian yang bergerak lebih sedikit
8 satu katup pembalik yang cocok untuk pompa dengan berbagai spesifikasi


Batas Suhu Terapan Maksimum(bahan diafragma / bola / segel)


Acetal ···················································.000 °·4 40 °. 40 ° - 150°F (4,4- 65,5°C)
Santoprene····················································································································································· -40 °- 107.2 °C) ···································································································· ·······40°- 220°F (4,4°- 104°C) Nitril·································································································································· ············································································································································································································································································| ·····················································································································································································································– °-176.6°C) Hytrel·································································································································································································································································· ····················································································································| ··································10°-200 °F (-28.9°- 65.5°C) Polipropilena······ ·········································32°- 175 °F (0-79.4°C)


1”Diagram alir
