Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
| Nama: | Pompa Diafragma Viskositas Tinggi | Angkat maksimum: | 70M |
|---|---|---|---|
| Berat badan: | 103kg | Kekuasaan: | Gas |
| Fitur: | portabel | Aplikasi: | Viskositas tinggi |
| Menyoroti: | pompa diafragma ganda pneumatik,pompa udara pneumatik |
||

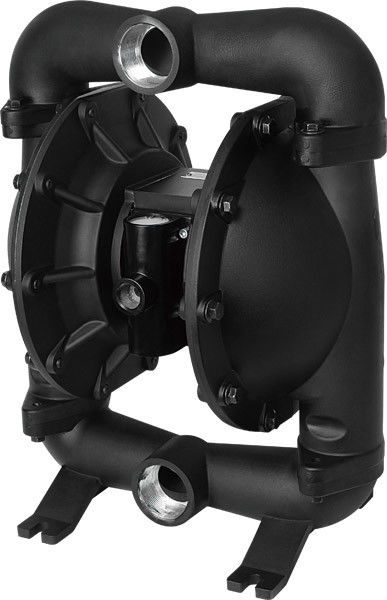

Gas Diafragma Tinggi Pompa Diafragma / Pompa Udara Diafragma Portabel Ganda
Aplikasi Pompa Diafragma Viskositas Tinggi
Pelarut
AC id
Cairan korosif
Transmisi tekanan tinggi cairan viskositas tinggi
Transmisi partikel padat besar
Media abrasif
cairan berbahaya dan mudah terbakar
Bersihkan cairan ruangan
Parameter Pompa Diafragma Viskositas Tinggi
| Barang | Deskripsi | Satuan | Gambar Referensi |
| 1 | Tekanan saluran masuk udara maksimum | Mpa | 0,83 |
| 2 | Laju aliran maksimum | L / Min | 903 |
| 3 | Angkat maksimum | M. | 70 |
| 4 | Tekanan outlet maksimum | Mpa | 0,83 |
| 5 | Ukuran partikel maksimum | mm | 9 |
| 6 | Berat | kg | 103 |
| 7 | Tingkat kebisingan | db | ＜ 70 |
Rincian Pompa Diafragma Viskositas Tinggi
A 80 XX - XXX - X (pemilihan model)
Bentuk mulut pipa: A-BSP B-NPT (F) C-Flange
Bahan diafragma: 9 - Santoprene H - Hytrel T - PTFE / Santoprene
Bahan Bola: 9 -Santoprene H - Hytre T - PTFE A - Asetal
Bahan kursi bola: P / K –Polypropylene / Kynoar SS –Stainless Steel
Bahan pompa: SS –Stainless Steel AL –Aluminium Alloy CI- Carbon Steel P / K –Polypropylene / Kynoar
Batas Suhu Terapan Maksimum (bahan diafragma / bola / segel)
Acetal ···················…··········…··············· 40 ° - 150 ° F (4,4-65,5 ° C)
Santoprene ···························…········· -40 ° - 225 ° F ( -40 ° - 107.2 ° C) Teflon ···················…······················ ········ 40 ° - 220 ° F (4.4 ° - 104 ° C) Nitrile ······························ ··················· 10 ° - 180 ° F (-12 ° - 82 ° C) Viton ················· ··································· -40 ° - 350 ° F (-40 ° -176,6 ° C ) Hytrel · ················…·········…···················· · -20 ° -150 ° F (-12 ° - 93 ° C) Kynar ··············…··················· ················· 10 ° -200 ° F (-28,9 ° - 65,5 ° C) Polypropylene ···················· ········ 32 32 32 32 32 32 32 32·· 32 32 32 32 ° 32 ° 32 ° 32 ° 32 32 ° 32 ° 32 ° 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 ° - 175 ° F (0-79.4 ° C)

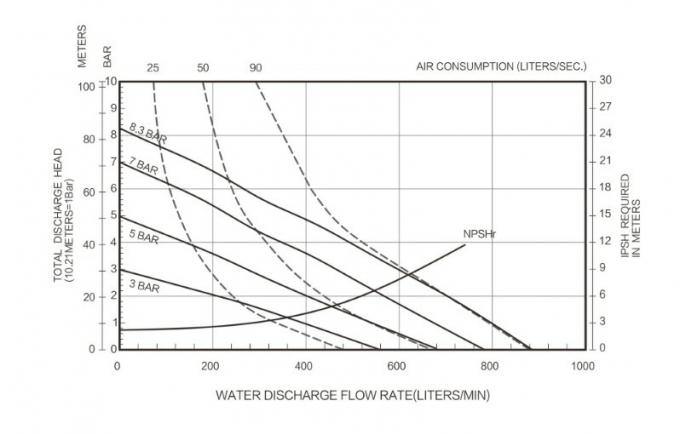

3 "Diagram alir
