| Nama Produk: | diafragma pompa pneumatik | Fitur: | Ledakan bukti |
|---|---|---|---|
| Aplikasi: | Transfer Kimia | Tekanan saluran masuk udara maksimum: | 0,83Mpa |
| Bahan: | Plastik | penggunaan: | Penggunaan Lingkungan Berbahaya / Meledak |
| Menyoroti: | pompa diafragma dioperasikan pneumatik,pneumatik pompa diafragma ganda |
||

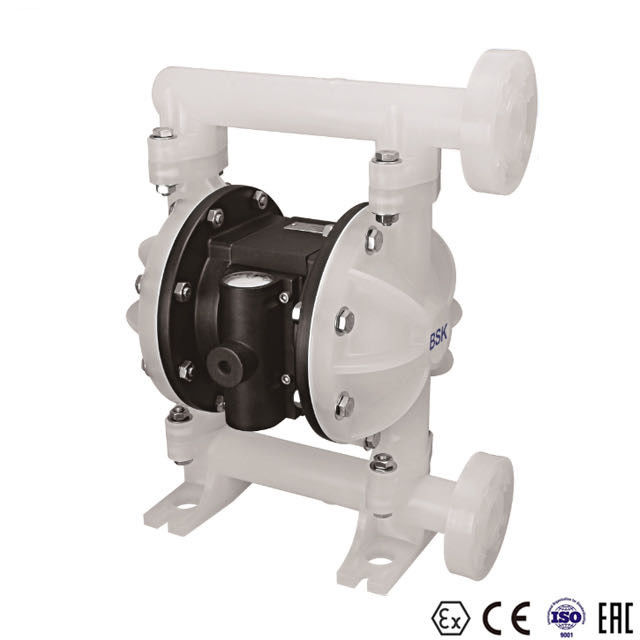

Plastik Diaphragm Pump Pneumatic Gunakan Lingkungan Berbahaya / Meledak
Aplikasi Pompa Diafragma Pneumatik
• Proses Unggas, Ikan & Daging
• Susu
• Makanan Olahan
• Buah, Sayuran & Bumbu
• Bio-farmasi
• Produk farmasi
• Perawatan kesehatan & pribadi
• Penganan
• Kromatografi, Pemisahan, Pemurnian
• Transfer produk dengan kemurnian tinggi
• Filter pompa umpan pers
• Mendukung Proses
• Asam, Pelarut, Kaustik & Alkohol
• Media Abrasif & Padatan
• Injeksi & Pengukuran Kimia
• Transfer air limbah
Parameter Pompa Diafragma Pneumatik
| Barang | Deskripsi | Satuan | Gambar Referensi |
| 1 | Tekanan saluran masuk udara maksimum | Mpa | 0,83 |
| 2 | Laju aliran maksimum | L / Min | 667 |
| 3 | Angkat maksimum | M. | 70 |
| 4 | Tekanan outlet maksimum | Mpa | 0,83 |
| 5 | Ukuran partikel maksimum | mm | 7 |
| 6 | Bobot | kg | 28 |
| 7 | Tingkat kebisingan | db | ＜ 70 |
Spesifikasi Pompa Diafragma Pneumatik
1. Tidak bocor
2. Kinerja priming diri yang baik
3. Sampaikan semua jenis media
Rincian Pompa Diafragma Pneumatik
Batas Suhu Terapan Maksimum (bahan diafragma / bola / segel)
Acetal ····················…········…················ 40 ° - 150 ° F (4,4-65,5 ° C)
Santoprene ·············…···············…········ -40 ° - 225 ° F ( -40 ° - 107.2 ° C) Teflon ····················…····················· ········ 40 ° - 220 ° F (4.4 ° - 104 ° C) Nitrile ······························ ··················· 10 ° - 180 ° F (-12 ° - 82 ° C) Viton ················· ···································· -40 ° - 350 ° F (-40 ° -176,6 ° C) Hytrel · ···············…·········…···················· ·· -20 ° -150 ° F (-12 ° - 93 ° C) Kynar ·············…··················· ················· 10 ° -200 ° F (-28,9 ° - 65,5 ° C) Polypropylene ·················· ········ 32 32 32 32 32 32 32· 32 32 32 32 32 32 32 ° 32 32 ° 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 ° - 175 ° F (0-79.4 ° C)
