Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
| Nama: | Pompa Diafragma Ganda yang Dioperasikan Udara | Bahan: | besi tahan karat |
|---|---|---|---|
| Fitur: | Korosi Asam Kuat | Aliran maksimum: | 480L / mnt |
| Ujung yang basah: | besi tahan karat | Bobot: | 33.8kgs |
| Ukuran kemasan:: | 39*33*56CM | Saluran masuk udara: | 3/4" |
| Menyoroti: | Pompa Diafragma Ganda Didorong Udara Stainless Steel,Pompa Diafragma Ganda Didorong Udara Korosi Asam |
||

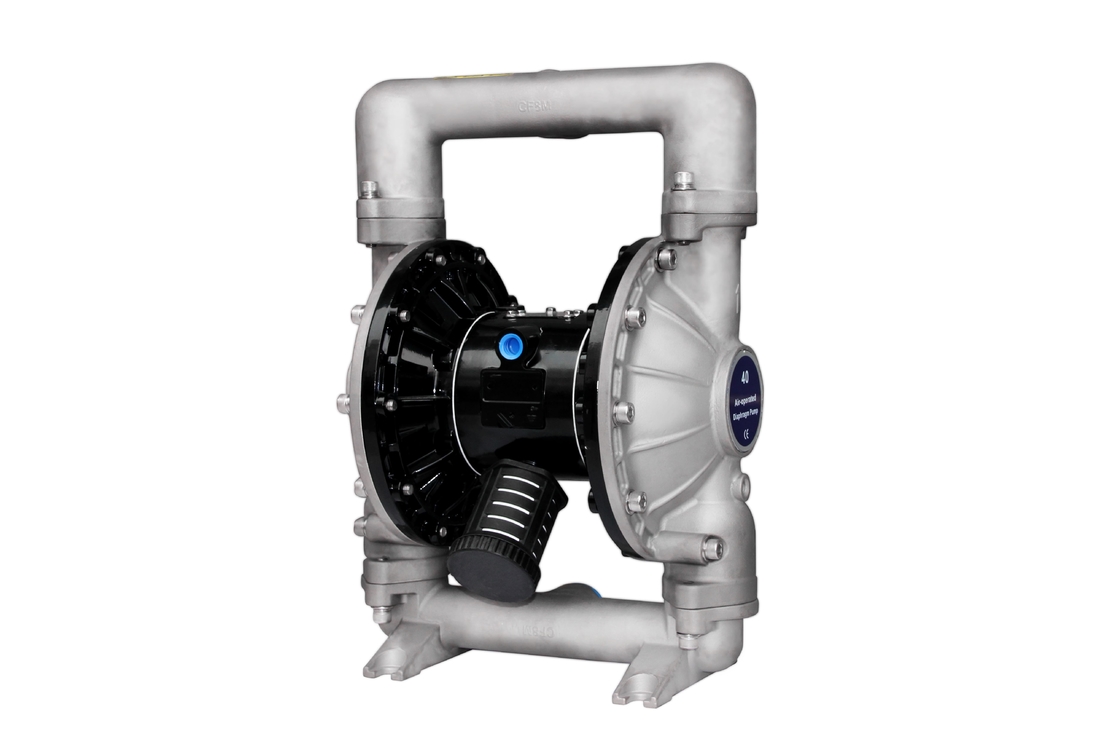

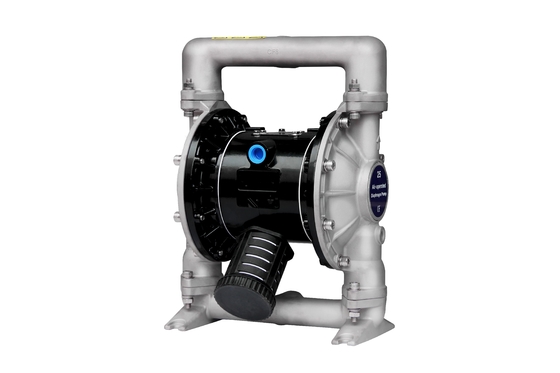

Pompa Diafragma Ganda Didorong Udara Stainless SteelKetahanan Kimia
Pompa Diafragma Ganda Didorong Udara Stainless Steel Korosi Asam Kuat
Pengantar Pompa Diafragma Ganda Berbasis Udara
Pompa Diafragma Ganda Berbasis Udara adalah salah satu jenis pompa perpindahan positif yang merupakan mesin pemindah tipe baru Catu daya adalahudara terkompresi, Itu milik pompa diafragma dan bergerak maju mundur
, seperti cairan dengan granul, cairan korosif tinggi, viskositas tinggi, mudah menguap, mudah terbakar, cairan beracun.
Parameter Pompa Diafragma Ganda Berbasis Udara
| Keterangan | Satuan | Gambar Referensi |
| Tekanan masuk udara maksimum | Mpa | 0.83 |
| Laju aliran maksimum | L/Min | 360 |
| Angkat maksimum | M | 70 |
| Tekanan outlet maksimum | Mpa | 0.83 |
| Ukuran partikel maksimum | mm | 3 |
| Bobot | kg | 12.3 |
| Tingkat kebisingan | db | 70 |
A40 XX - XXX - X (pemilihan model)
Bentuk mulut pipa: A-BSP B-NPT(F) C-Flange
Bahan diafragma: 9 – Santoprene H – Hytrel T - PTFE/Santoprene
Bahan bola:9 -Santoprene H – Hytre T – PTFE A - Acetal
Bahan kursi bola: P/K –Polypropylene/Kynoar SS –Stainless Steel
Bahan pompa: SS –Stainless Steel AL –Aluminium Alloy CI- Carbon Steel P/K –Polypropylene/Kynoar
Batas Suhu Terapan Maksimum(bahan diafragma / bola / segel)
Asetal ········································································ 150 °F (4,4- 65,5 °C)
Santoprene··································································································································································································– °- 107.2°C) ···································································································································································································································································································· ···40°- 220°F (4,4°- 104°C) Nitril········································································································· ················10°- 180°F (-12°- 82°C) Viton·················· ···································-40°- 350 °F (-40°-176.6°C) Hytrel···· ················································································································································································································– F (-12°- 93°C) Kynar····························································································· ·········10°-200 °F (-28,9°- 65,5°C) Polipropilena······················································································ ············32°- 175°F (0-79.4°C)
1,5”Diagram Pompa Diafragma Ganda Berbasis Udara
Video Detail Pompa Diafragma Ganda Berbasis Udara
