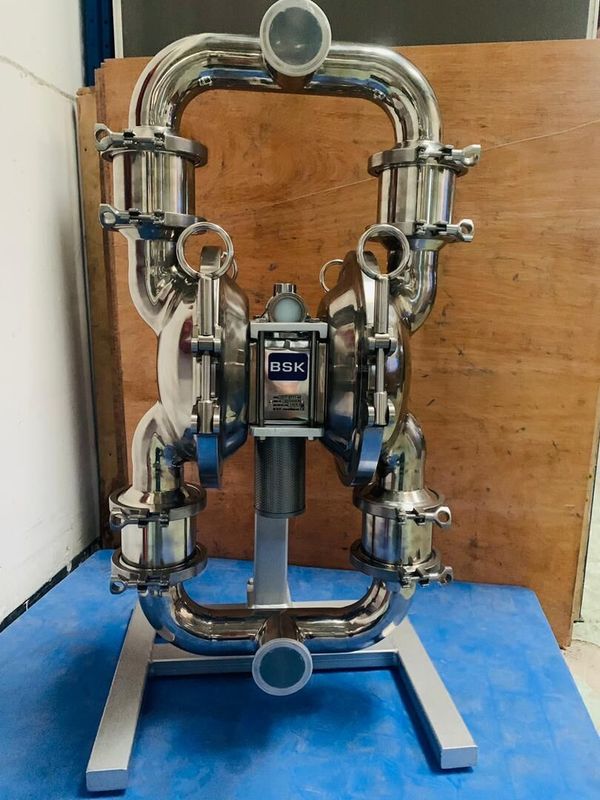

FDA 70db Food Grade 3A Pompa Diafragma Ganda Didorong Udara

Standar Food Grade Pompa Diafragma FDA & 3A

Makanan / Kimia Pemindahan Positif Pompa Tahan Korosi

Aplikasi dan Keuntungan Pompa Perpindahan Positif:

Pompa diafragma pneumatik dioperasikan dengan udara terkompresi.pompa diafragma cocok untuk memompa cairan dengan partikel, dan berbagai cairan, yang sangat kental, mudah menguap, korosif atau beracun, serta koloid.Badan pompa terbuat dari paduan aluminium, besi tuang atau baja tahan karat.Diafragma terbuat dari karet berkualitas tinggi seperti karet Nitril, karet chloronorgutta, karet fluoroine.Pompa diafragma banyak digunakan dalam industri kimia minyak bumi, elektronik, keramik, makanan dan tekstil.

Parameter Pompa Perpindahan Positif

FA 50 - XX XX - X (pemilihan model)

Bentuk mulut pipa: A-BSP B-NPT(F) C-Flange

Bahan diafragma: 9 – Santoprene H – Hytrel T - PTFE/Santoprene

Bahan bola:9 -Santoprene H – Hytre T – PTFE A - Acetal

Bahan kursi bola: P/K –Polypropylene/Kynoar SS –Stainless Steel

Bahan pompa: SS –Stainless Steel AL –Aluminium Alloy CI- Carbon Steel P/K –Polypropylene/Kynoar

Batas Suhu Terapan Maksimum (bahan diafragma / bola / segel)

Asetal ··············································· 40 ° - 150°F (4,4- 65,5°C)

Santoprene·················································································································································· -40°- 107.2°C) ····························································································································· ·······40°- 220°F (4,4°- 104°C) Nitril······················································································· ······························································································································· ···········································-40°- 350 °F (-40°-176.6 °C) Hytrel····················································································································································································································································································· ···-20°-150°F (-12°- 93°C) Kynar······················································································································································································································································································ ···················10°-2000°F (-28,9°- 65,5°C) Polipropilena·············································································· ························ 32 ° - 175 ° F (0-79,4 ° C)
