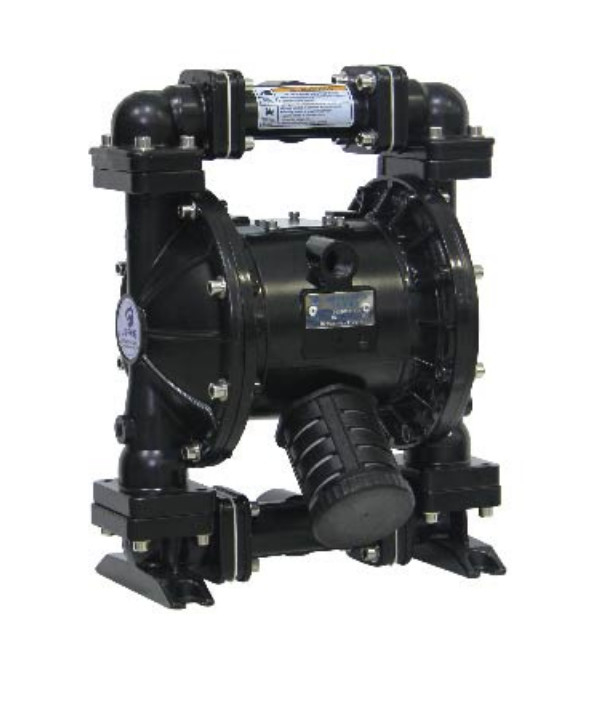

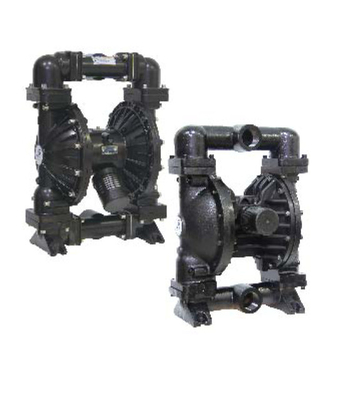

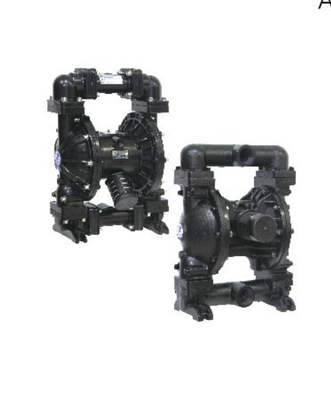

Pompa Transfer Diafragma Submersible Pompa Diafragma Udara 2 Inch 667L / Min

Pompa Transfer Diafragma Submersible Pompa Diafragma Udara 2 Inch 667L / Min

Pompa Diafragma Baja Submersible / Slurry Casting 667L / Min 8.3bar

Pompa diafragma udara(juga dikenal sebagaiPompa membran, pompa diafragma ganda yang dioperasikan udara (AOOD)ataupompa diafragma pneumatik) yang menggunakan kombinasi aksi bolak-balik dari karet, termoplastik atau diafragma dan katup yang sesuai di kedua sisi diafragma (katup periksa, katup kupu-kupu, katup penutup, atau bentuk lain dari katup penutup) untuk memompa cairan.

Gambaran umum

Pompa Transfer Diafragmamenawarkan pengiriman volume tinggi bahkan pada tekanan udara rendah dan berbagai opsi kompatibilitas material yang tersedia.Lihat bagan model dan opsi.Pompa BSK dilengkapi dengan motor udara termodulasi dan bagian cairan.

Pompa diafragma yang dioperasikan udara secara bergantian menghasilkan tekanan fluida masuk dan tekanan fluida positif di ruang fluida dengan menggunakan perbedaan tekanan di ruang udara.Katup bola dapat memastikan aliran cairan ke depan.

Siklus pompa akan dimulai saat tekanan udara diterapkan dan akan terus memompa dan memenuhi permintaan.Ini akan membangun dan mempertahankan tekanan saluran dan akan berhenti bersepeda setelah tekanan saluran maksimum tercapai (perangkat pengeluaran ditutup) dan akan melanjutkan pemompaan sesuai kebutuhan.

spesifikasi

Pompa Diafragma Udara
1. Tidak bocor
2. Kinerja priming diri yang baik
3. Sampaikan semua jenis media
4. Bahan: Baja tuang

1. Ledakan-bukti, nol kebocoran, operasi sederhana.

2. Kemampuan Idling, Self suction, Tidak ada kontrol yang rumit.

3. Keragaman material, tidak ada bagian yang berputar, berlaku untuk berbagai situasi erosif.

4. Diafragma, kursi bola dan bola mengadopsi bahan impor dengan masa pakai lebih lama.

5. Modularisasi katup utama dan motor udara.Tidak rusak, mudah dibongkar dan diperbaiki.

Aplikasi Industri

1. Berbagai cairan beracun, mudah terbakar dan mudah menguap;

2. Berbagai cairan asam kuat, basa kuat dan sangat korosif;

3. Media transmisi dengan suhu tinggi pada 150;

4. Backing pressure feeder untuk berbagai filter press;

5. Dipekerjakan untuk pengambilan dan sirkulasi air panas;

6. Bongkar muat kapal tanker minyak, depot minyak dan barang minyak.

7. Memompa acar, selai, kentang tumbuk dan coklat dll.

8. Memompa perekat cat, karet dan pigmen;

9. Digunakan untuk berbagai porselen, glasir, semen, nat, mortar dan bubur;

10. Digunakan untuk berbagai karet, lateks, pelarut organik, isian;

11. Dipekerjakan untuk pembersihan tongkang tanker minyak untuk menyedot usia dalam dan sisa minyak.

12. Digunakan untuk hop, nat tipis ragi, sirup dan molase;

13. Pemompaan umur dan sedimen di tambang, adit, terowongan dan er.

14. Hisap dan transmisi berbagai media khusus.

A 50 XX - XXX - X (pemilihan model)

Bentuk mulut pipa: A-BSP B-NPT(F) C-Flange

Bahan diafragma: 9 – Santoprene H – Hytrel T - PTFE/Santoprene

Bahan bola:9 -Santoprene H – Hytre T – PTFE A - Acetal

Bahan kursi bola: P/K –Polypropylene/Kynoar SS –Stainless Steel

Bahan pompa: SS –Stainless Steel AL –Aluminium Alloy CI- Carbon Steel P/K –Polypropylene/Kynoar

Batas Suhu Terapan Maksimum(bahan diafragma / bola / segel)

Acetal ···················································.000 °·4 40 °. 40 ° - 150°F (4,4- 65,5°C)

Santoprene····················································································································································································· (-40°- 107.2°C) ········································································································· ·········40°- 220°F (4,4°- 104°C) Nitril······························································································································································································································································· ·························································································································································································································································································· ·········· ···········································································································································– -176.6°C) Hytrel················································· ·······-20°-150°F (-12°- 93°C) Kynar··················································································································································································································································································· ·····················10°-2000°F (-28.9°- 65.5°C) Polipropilena································································································································································································································································ ········································································································································································································································································································ ··
