Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
| Menjamin:: | satu tahun | Produksi: | Pompa Perpindahan Positif |
|---|---|---|---|
| Ukuran partikel maksimum: | 9mm | Penggunaan: | Pompa angin |
| Tekanan: | Tekanan tinggi | Kekuasaan: | Udara |
| Struktur: | Pompa diafragma | Bahan: | besi tahan karat |
| Aliran maksimum: | 480L / mnt | ||
| Cahaya Tinggi: | 3A Pompa Diafragma Ganda Didorong Udara,Pompa Diafragma Ganda Didorong Udara Food Grade,Pompa Diafragma Ganda Dioperasikan Udara |
||

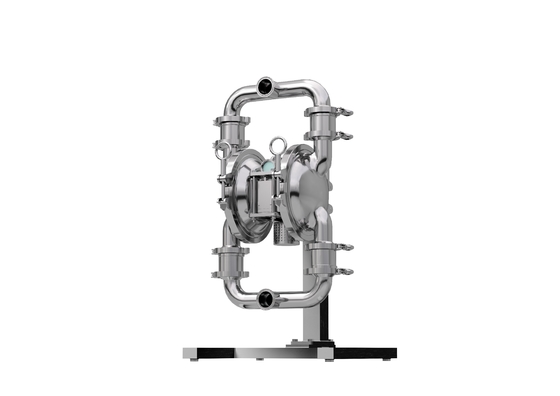

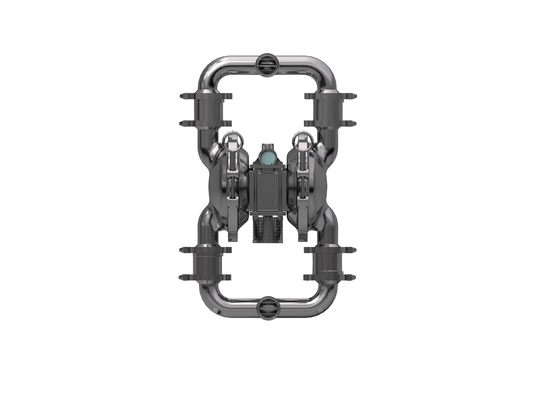

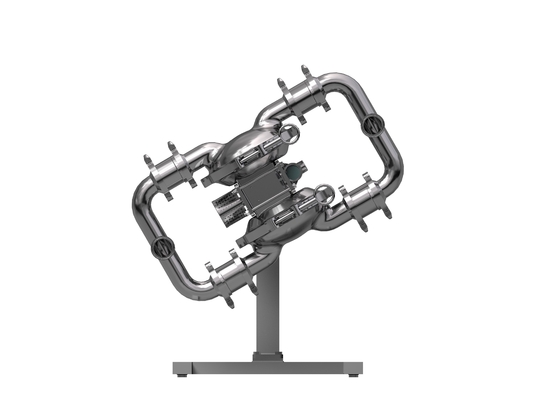

3A Food Grade Air dioperasikan Pompa Diafragma Ganda Untuk Produk Susu Jus Buah
Standar Food Grade Pompa Diafragma FDA & 3A
Makanan / Kimia Pemindahan Positif Pompa Tahan Korosi
Aplikasi dan Keuntungan Pompa Perpindahan Positif:
Pompa diafragma pneumatik dioperasikan dengan udara terkompresi.pompa diafragma cocok untuk memompa cairan dengan partikel, dan berbagai cairan, yang sangat kental, mudah menguap, korosif atau beracun, serta koloid.Badan pompa terbuat dari paduan aluminium, besi tuang atau baja tahan karat.Diafragma terbuat dari karet berkualitas tinggi seperti karet Nitril, karet chloronorgutta, karet fluoroine.Pompa diafragma banyak digunakan dalam industri kimia minyak bumi, elektronik, keramik, makanan dan tekstil.
Parameter Pompa Perpindahan Positif
| Barang | Keterangan | Satuan | Gambar Referensi |
| 1 | Tekanan masuk udara maksimum | Mpa | 0.83 |
| 2 | Laju aliran maksimum | L/Min | 367 |
| 3 | Angkat maksimum | M | 70 |
| 4 | Tekanan outlet maksimum | Mpa | 0.83 |
| 5 | Ukuran partikel maksimum | mm | 7 |
| 6 | Bobot | kg | 62.3 |
| 7 | Tingkat kebisingan | db | 70 |
FS 644- XX XX - X (pemilihan model)
Bentuk mulut pipa: A-BSP B-NPT(F) C-Flange
Bahan diafragma: 9 – Santoprene H – Hytrel T - PTFE/Santoprene
Bahan bola:9 -Santoprene H – Hytre T – PTFE A - Acetal
Bahan kursi bola: P/K –Polypropylene/Kynoar SS –Stainless Steel
Bahan pompa: SS –Stainless Steel AL –Aluminium Alloy CI- Carbon Steel P/K –Polypropylene/Kynoar
Batas Suhu Terapan Maksimum(bahan diafragma / bola / segel)
Acetal ···················································.000 °·4 40 °. 40 ° - 150°F (4,4- 65,5°C)
Santoprene····················································································································································· -40 °- 107.2 °C) ···································································································· ·······40°- 220°F (4,4°- 104°C) Nitril·································································································································· ·····················10°- 180°F (-12°- 82°C) Viton············· ··········································-40°- 350 °F (-40°-176.6 °C) Hytrel·················································································································································································································· ···-20°-150°F (-12°- 93°C) Kynar························································································································································································································································································ ···················10°-2000°F (-28,9°- 65,5°C) Polipropilena····························································································································································································································· ························32°- 175 °F (0-79.4°C)
Dimensi instalasi:
