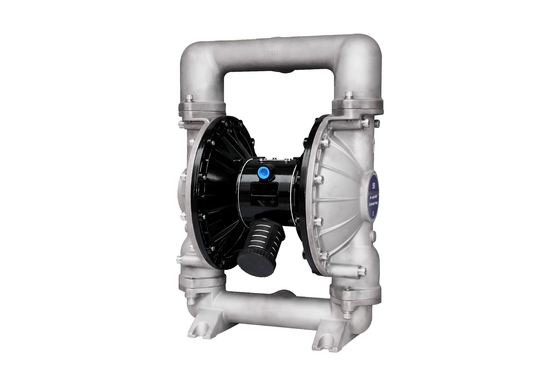

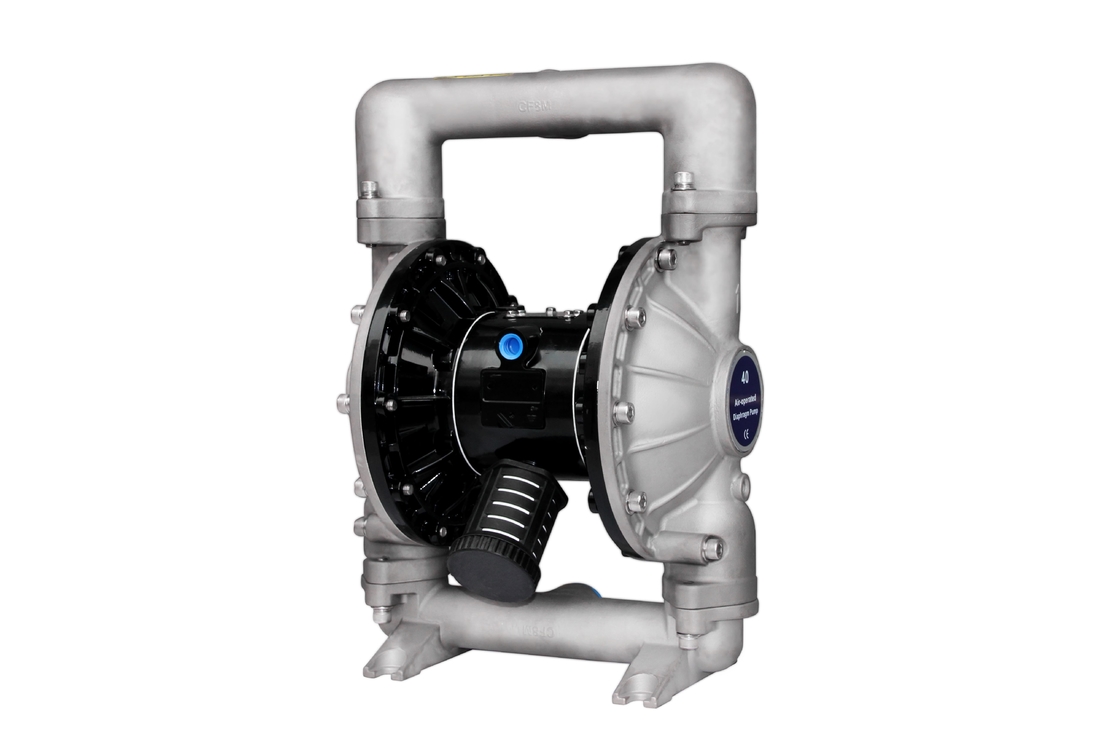

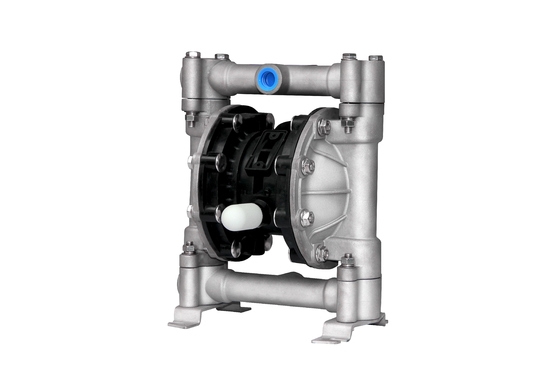

Pompa Bahan Bakar Diafragma Ganda Pneumatik Stainless Steel 70m Angkat 335L / Min

Pompa Diafragma Duoble Pneumatik Stainless Steel / Diafragma Pompa Bahan Bakar


Pengenalan Pompa Diafragma Udara Terkompresi

Pompa Diafragma Udara Terkompresi dirancang untuk mengatasi berbagai masalah yang dihadapi pemompa di lokasi kerja.Baik Anda memiliki ruang terbatas, memindahkan cairan dengan padatan atau komposisi campuran, atau memerlukan sistem pompa priming yang aman untuk pekerjaan Anda, pompa AOD kami memberikan solusi portabel untuk menyelesaikan pekerjaan.

Beroperasi melalui ruang cairan diafragma ganda, perpindahan positif menciptakan vakum udara, memulai priming cepat dengan sedikit usaha.Setelah prima, pompa diafragma yang dioperasikan dengan udara mampu melewatkan hingga 1-¼ inci padatan (komposisi padat hingga 90%) dan cairan yang sangat kental dengan peringkat melebihi 25.000 cPs.Penanganan cairan, portabilitas, dan daya tahan Pompa AOD menjadikannya pompa serbaguna untuk aplikasi pekerjaan apa pun.

Pompa Diafragma Udara TerkompresiAplikasi

Transmisi partikel padat besar

media abrasif

cairan berbahaya dan mudah terbakar

Cairan kamar bersih

Keunggulan Produk
1.Menyediakan operasi yang bebas kios dan bebas es
2. Pemalasan, self-priming, kemampuan menenggelamkan.
3. Menawarkan kemampuan untuk memvariasikan aliran keluar dan tekanan pembuangan.

Pompa Diafragma Udara TerkompresiParameter



A 40 XX - XXX - X (pemilihan model)

Bentuk mulut pipa: A-BSP B-NPT(F) C-Flange
Bahan diafragma: 9 – Santoprene H – Hytrel T - PTFE/Santoprene
Bahan bola:9 -Santoprene H – Hytre T – PTFE A - Acetal
Bahan kursi bola: P/K –Polypropylene/Kynoar SS –Stainless Steel
Bahan pompa: SS –Stainless Steel AL –Aluminium Alloy CI- Carbon Steel P/K –Polypropylene/Kynoar


Batas Suhu Terapan Maksimum (bahan diafragma / bola / segel)


Acetal ···················································.000 °·4 40 °. 40 ° - 150°F (4,4- 65,5°C)
Santoprene····················································································································································· -40 °- 107.2 °C) ···································································································· ······40°- 220°F (4,4°- 104°C) Nitril···························································································································· ···················10°- 180 °F (-12°- 82°C) Viton··············· ········································-40°- 350 °F (-40 °-176.6 °C) Hytrel···················································································································································· -20°-150 °F (-12°- 93°C) Kynar································ ················10°-200 °F (-28,9°- 65,5°C) Polipropilena··································································································································· ·····················32°- 175 °F (0-79.4°C)


1.5 "Diagram alir
