Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
| Nama Produk: | diafragma pompa pneumatik | Berat badan: | 28kg |
|---|---|---|---|
| Aplikasi: | cairan korosif | Tekanan saluran masuk udara maksimum: | 0,83Mpa |
| Mengetik: | Udara Dioperasikan | Aplikasi: | Cairan Korosif Tinggi |
| Menyoroti: | pompa diafragma dioperasikan pneumatik,pneumatik pompa diafragma ganda |
||

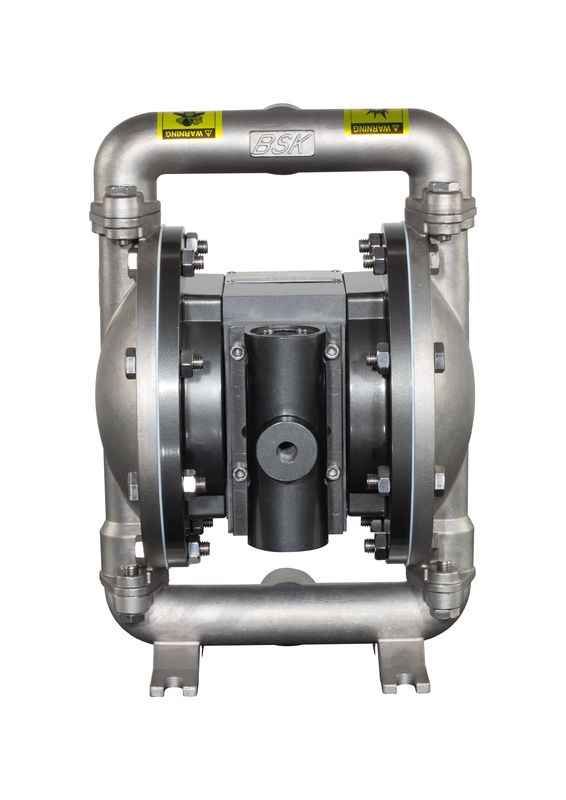

Pompa Diafragma Pneumatik Dioperasikan Udara Cairan Korosif Tinggi 0.83Mpa
Pendahuluan Pompa Diafragma Pneumatik
Pneumatic Diaphragm Pump adalah mesin pemindah tipe baru, adalah pompa terbaru saat ini di Cina. Catu daya mengadopsi kompresi udara, untuk menyedot semua jenis cairan korosif sepenuhnya, seperti cairan dengan granul, cairan korosif tinggi, viskositas tinggi, mudah menguap, mudah terbakar, cairan beracun.
| Barang | Deskripsi | Satuan | Gambar Referensi |
| 1 | Tekanan saluran masuk udara maksimum | Mpa | 0,83 |
| 2 | Laju aliran maksimum | L / Min | 667 |
| 3 | Angkat maksimum | M. | 70 |
| 4 | Tekanan outlet maksimum | Mpa | 0,83 |
| 5 | Ukuran partikel maksimum | mm | 7 |
| 6 | Berat | kg | 28 |
| 7 | Tingkat kebisingan | db | ＜ 70 |
Spesifikasi Pompa Diafragma Pneumatik
Pompa Diafragma Udara
1. Performa priming diri yang baik
2. Sampaikan semua jenis media
3. Bahan: Baja tuang, Alu, SS, PP
A 50 XX - XXX - X ( pemilihan model)
Bentuk mulut pipa: A-BSP B-NPT (F) C-Flange
Bahan diafragma: 9 - Santoprene H - Hytrel T - PTFE / Santoprene
Bahan Bola: 9 -Santoprene H - Hytre T - PTFE A - Asetal
Bahan kursi bola: P / K –Polypropylene / Kynoar SS –Stainless Steel
Bahan pompa: SS –Stainless Steel AL –Aluminium Alloy CI- Carbon Steel P / K –Polypropylene / Kynoar
Batas Suhu Terapan Maksimum (bahan diafragma / bola / segel)
Acetal ···················…··········…··············· 40 ° - 150 ° F (4,4-65,5 ° C)
Santoprene ···························…········· -40 ° - 225 ° F ( -40 ° - 107.2 ° C) Teflon ···················…······················ ········ 40 ° - 220 ° F (4.4 ° - 104 ° C) Nitrile ······························ ··················· 10 ° - 180 ° F (-12 ° - 82 ° C) Viton ················· ···································· -40 ° - 350 ° F (-40 ° -176,6 ° C) Hytrel · ···············…·········…···················· ·· -20 ° -150 ° F (-12 ° - 93 ° C) Kynar ·············…··················· ················· 10 ° -200 ° F (-28,9 ° - 65,5 ° C) Polypropylene ·················· ········ 32 32 32 32 32 ° 32·· 32 32 32 32 32 32 32 ° 32 32 ° 32 32 32 32 ° 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 ° - 175 ° F (0-79.4 ° C)
Diagram Pompa Diafragma Pneumatik
