Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
| Produksi: | Pompa Diafragma Baja Tahan Karat | Aplikasi: | viskositas tinggi |
|---|---|---|---|
| Tekanan masuk udara maksimum: | 0.83Mpa | jaminan: | Satu tahun |
| Bahan: | Tahan karat | Fitur: | Ketahanan Suhu yang Kuat |
| Menyoroti: | pompa diafragma ganda pneumatik,pompa udara pneumatik |
||

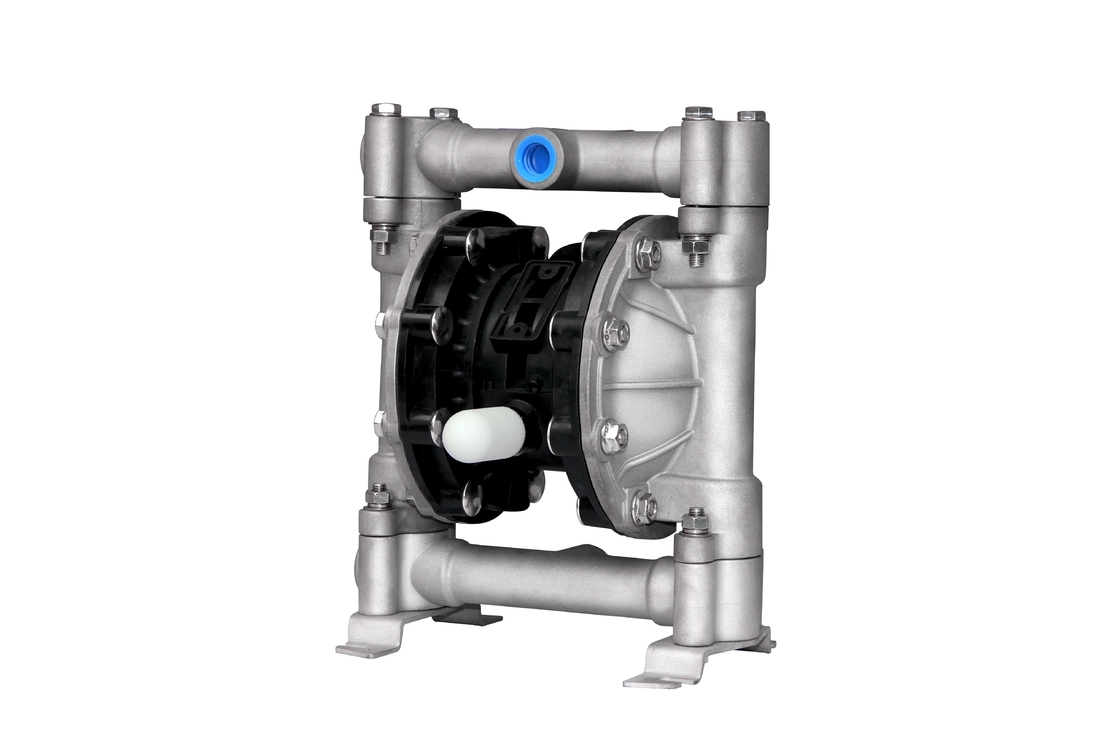

Pompa Diafragma Pneumatik Viskositas Tinggi Tahan Suhu Yang Kuat
Deskripsi Pompa Diafragma Pneumatik
1. Pompa Diafragma Ganda Udara Dioperasikan Pompa Diafragma Ganda Diafragma Karet untuk Pompa untuk Makanan & Kimia, Pompa Diafragma Tahan Kimia adalah jenis baru mesin transportasi, mengadopsi udara kompres, asap dan gas buang industri sebagai sumber daya.
2. Ini memiliki dua diafragma, udara terkompresi datang ke badan pompa untuk menggerakkan pompa dalam aksi mengisap dan melepaskan yang konstan, sehingga dapat memompa cairan dengan mudah dengan prinsip ini.Juga sangat aman di lingkungan berbahaya karena tidak memiliki motor listrik.
Aplikasi Pompa Diafragma Pneumatik
| Aplikasi | |
| Pabrik Kimia |
Penanganan material atau bahan barel yang dapat dilepas ( dari pada |
| Farmasi pabrik |
Penanganan material atau bahan barel yang dapat dilepas (bukan pompa drum) |
| Farmasi pabrik kimia |
Penanganan material atau bahan barel yang dapat dilepas (bukan pompa drum) |
| Elektroplating Mesin |
Memompa bahan pelapis atau penggantian air limbah. |
| Pabrik berputar | Pewarna pengiriman untuk produksi tekstil/rajut |
Parameter Pompa Diafragma Pneumatik
| Barang | Keterangan | Satuan | Gambar Referensi |
| 1 | Tekanan masuk udara maksimum | Mpa | 0.83 |
| 2 | Laju aliran maksimum | L/Min | 667 |
| 3 | Angkat maksimum | M | 70 |
| 4 | Tekanan outlet maksimum | Mpa | 0.83 |
| 5 | Ukuran partikel maksimum | mm | 7 |
| 6 | Bobot | kg | 28 |
| 7 | Tingkat kebisingan | db | 70 |
BG15SS- XX - XX - XX (pemilihan model)
Bentuk mulut pipa: A-BSP B-NPT(F) C-Flange
Bahan diafragma: 9 – Santoprene H – Hytrel T - PTFE/Santoprene
Bahan bola:9 -Santoprene H – Hytre T – PTFE A - Acetal
Bahan kursi bola: P/K –Polypropylene/Kynoar SS –Stainless Steel
Bahan pompa: SS –Stainless Steel AL –Aluminium Alloy CI- Carbon Steel P/K –Polypropylene/Kynoar
Detail Pompa Diafragma Pneumatik
Batas Suhu Terapan Maksimum(bahan diafragma / bola / segel)
Acetal ···················································.000 °·4 40 °. 40 ° - 150°F (4,4- 65,5°C)
Santoprene····················································································································································· -40 °- 107.2 °C) ···································································································· ·······40°- 220°F (4,4°- 104°C) Nitril·································································································································· ··········································································································································································································································································································| ·············································-40°- 350 °F (-40 ° -176.6°C) Hytrel················································· ······-20°-150 °F (-12°- 93°C) Kynar··························································································································································· ··························································································································································································································································································| ··································32°- 175 °F (0-79.4°C)
Diagram Pompa Diafragma Industri
